ECS-961neo Digital Temperature Controller
ECS-961neo Digital Temperature Controller
Regular price
$240.00
Regular price
Sale price
$240.00
SKU:ECS-961
Couldn't load pickup availability

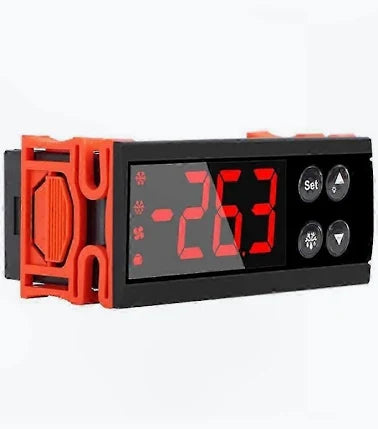

The ECS-961neo is a compact panel-mount digital temperature controller with a single output for cooling or heating. It suits display fridges, chillers, small cool rooms and freezers where the compressor can be switched directly. Supplied by Honar Refrigeration.
| Model | ECS-961neo |
| Power supply | 220VAC ±10%, 50/60Hz, less than 3 W |
| Output | 1 relay, 17A / 240VAC, drives a single-phase compressor up to 1HP directly |
| Measuring and control range | -50°C to 99°C |
| Accuracy | ±1°C (-40°C to 50°C), ±2°C (51°C to 70°C), ±3°C outside that range |
| Resolution | 0.1°C or 1°C |
| Sensor | 1 NTC temperature probe |
| Panel cut-out | 71 x 29 mm |
| Size | 78.5 x 34.5 mm front |
- Cooling or heating mode
- Off-cycle (shutdown) defrost with programmable timing
- Compressor protection: adjustable differential and run/off cycling if the probe fails
- Sensor fault alarm
- User menu plus password-protected technician menu
- Copy card support for fast setup of multiple controllers
Installation by a qualified electrician or refrigeration technician. Talk to Honar to confirm the right controller for your equipment.
