EAB-80 Cold Room Safety Alarm System
EAB-80 Cold Room Safety Alarm System
Regular price
$240.00
Regular price
Sale price
$240.00
SKU:EAB-80D CONTROLLER
Couldn't load pickup availability

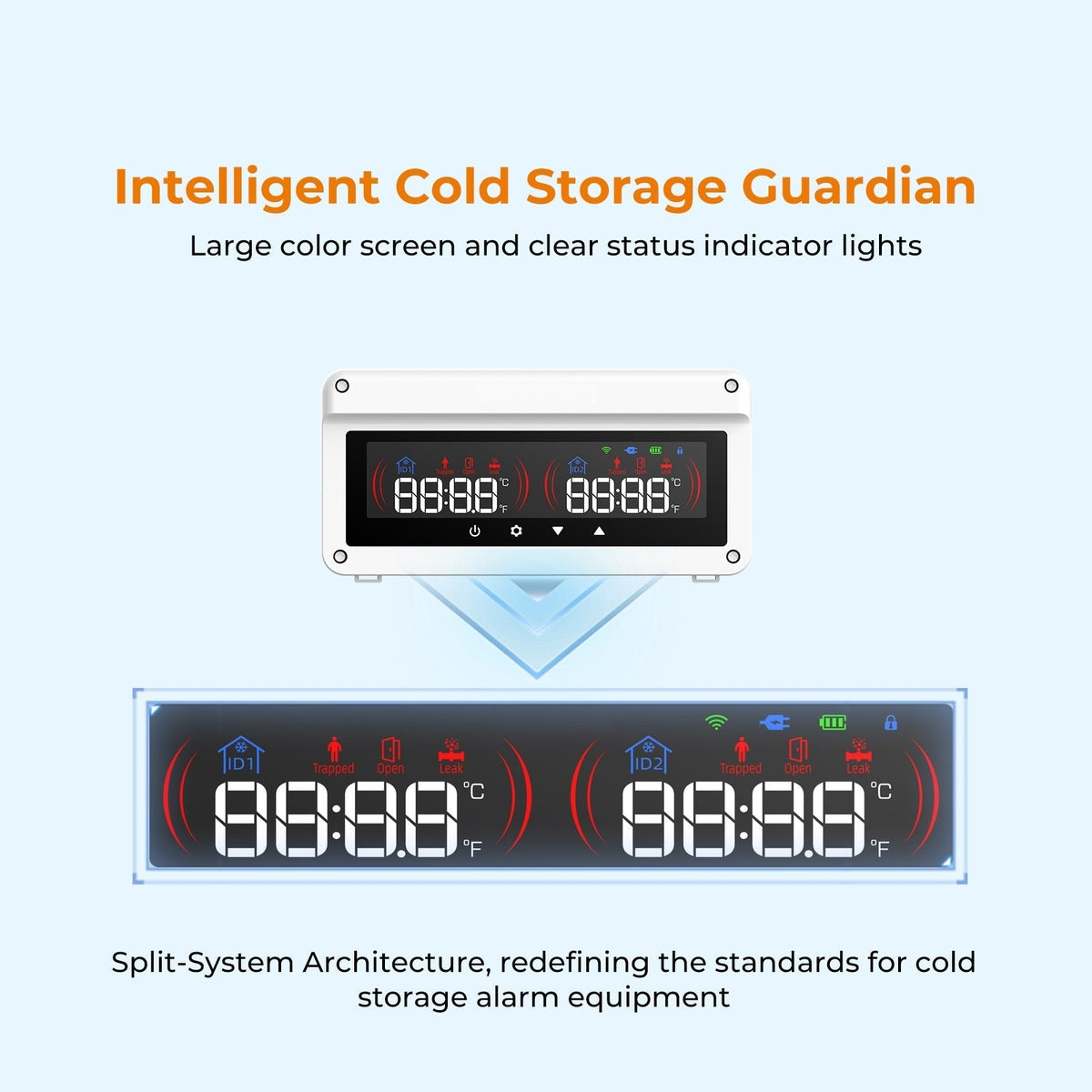

The EAB-80 is a cold room safety alarm system that watches for over-temperature, door left open, staff trapped inside and refrigerant gas leaks. It is a split system with a display and alarm panel and an emergency push-button panel, and it sends alerts to your phone and email as well as sounding locally. Supplied by Honar Refrigeration.

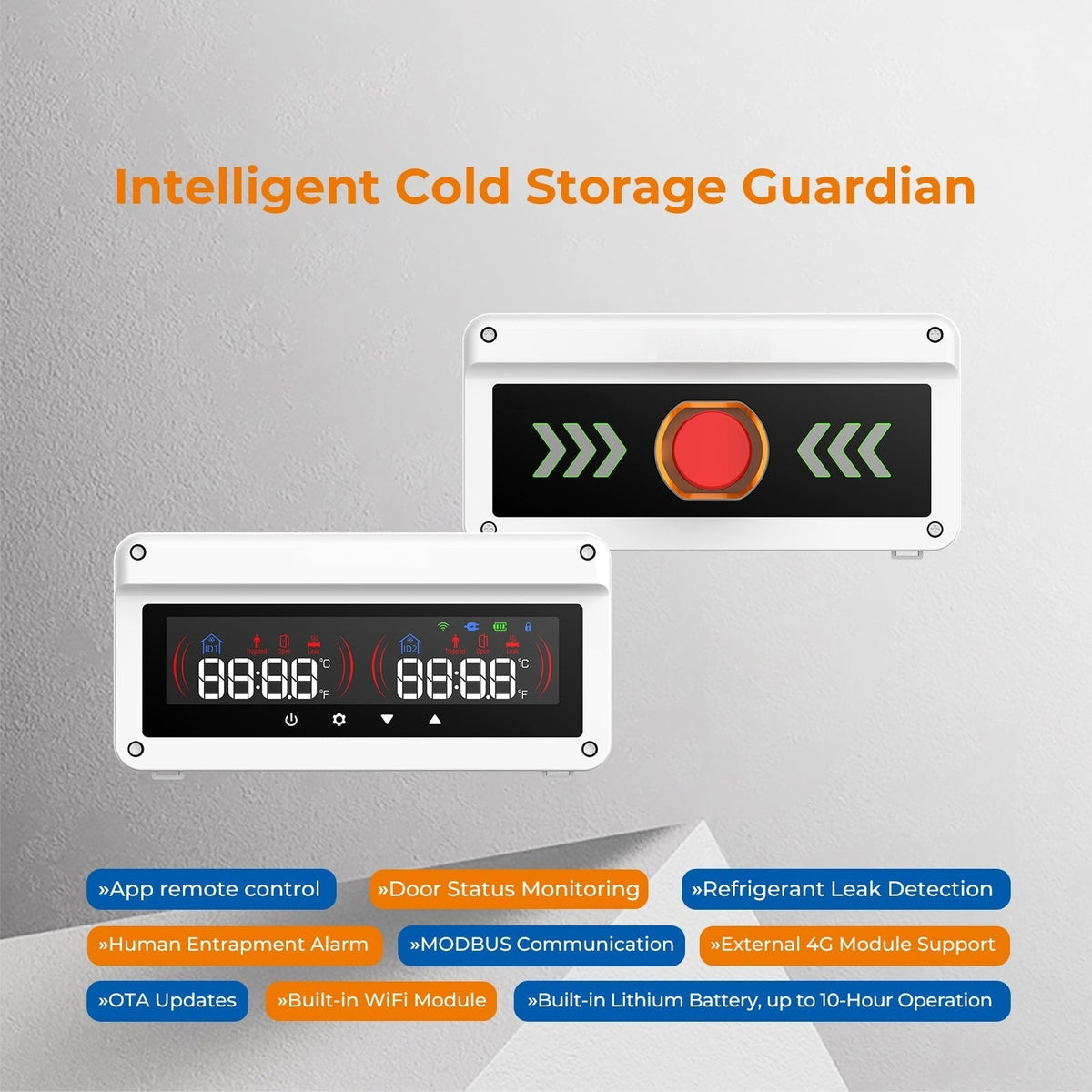

| Models | EAB-80D display unit; EAB-80P emergency button unit |
| Power supply | 100-240VAC, 50/60Hz, less than 5 W |
| Temperature range | -50°C to 120°C |
| Temperature accuracy | ±1°C (-20°C to 50°C), ±1.5°C outside that range |
| Sensor | NTC 10K probe, 2 m cable |
| Gas detection | Optional R290, CO₂ or NH₃ gas modules, 1 ppm resolution |
| Relay outputs | Relay 1: 10A 220V (NO) / 5A 220V (NC); Relay 2: 20A 220V (NO) |
| Communication | Dual-band Wi-Fi and Modbus |
| Backup battery | 3000 mAh, approx. 14 hours without mains power |
| Standard | Designed to EN 378-1 |
- Human entrapment alarm: emergency push button for anyone trapped in the cold room
- Door status and over-temperature alarms
- Refrigerant gas leak detection with optional R290, CO₂ or NH₃ modules
- Alerts by app, email, display panel and buzzer
- Relay outputs to signal a control room or drive an external siren and strobe
- Battery backup keeps the alarm working during a power cut
- Firmware updates over the air
Installation by a qualified electrician or refrigeration technician. Talk to Honar about which units you need for your cool room or freezer room.
