CMR034 Drop-In Ceiling Monoblock Cool Room Chiller 8m³
CMR034 Drop-In Ceiling Monoblock Cool Room Chiller 8m³
Regular price
$4,532.00
Regular price
Sale price
$4,532.00
SKU:CMR034
Couldn't load pickup availability

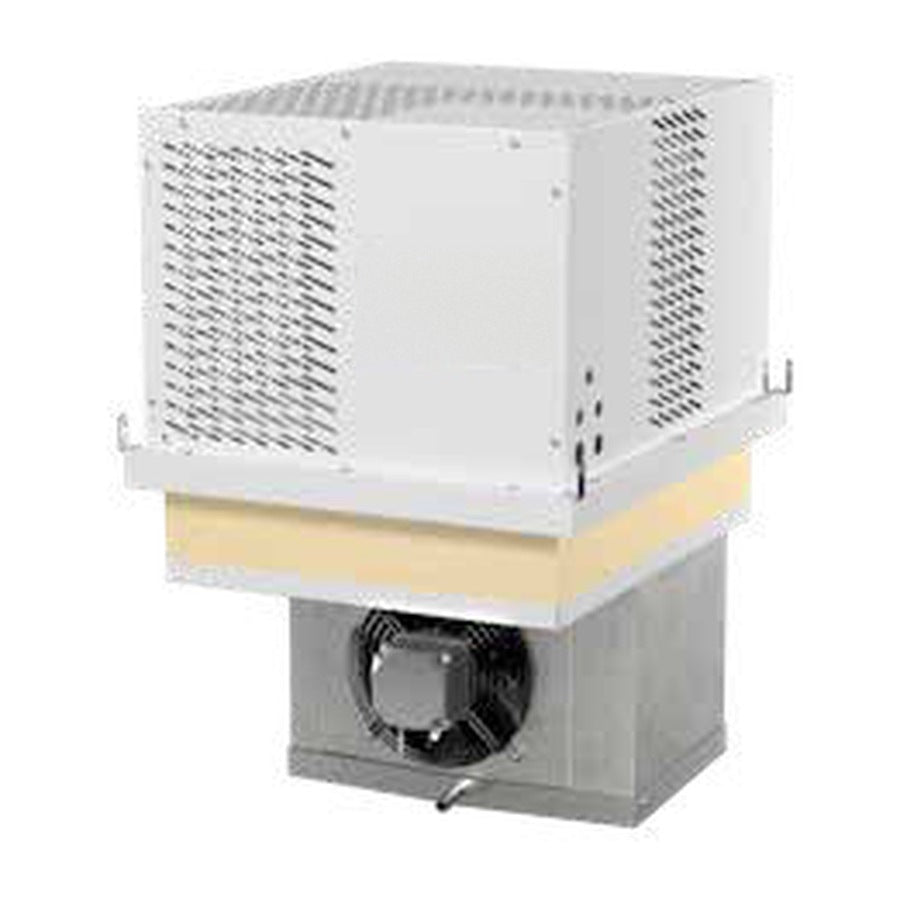

The CMR034 is a self-contained drop-in monoblock refrigeration unit for cool rooms, made in Italy and supplied by Honar Refrigeration. It sits on the cool room roof with the evaporator dropped into the room through one cut-out, so there is no copper pipe run or separate condensing unit to install.
| Model | CMR034 |
| Series | CM drop-in (ceiling mounted) monoblock, frame 1 |
| Application | Cool room, room temperature range +5°C to -5°C (chiller) |
| Cooling capacity | 1150 W at 0°C room / 32°C ambient |
| Suits room up to | approx. 8 m³ at 0°C room / 32°C ambient |
| Refrigerant | R290 (natural, ultra-low GWP) |
| Power supply | 230V single phase |
| Max power input | 918 W |
| Max current | 4.54 A |
| Evaporator air throw | 5 m |

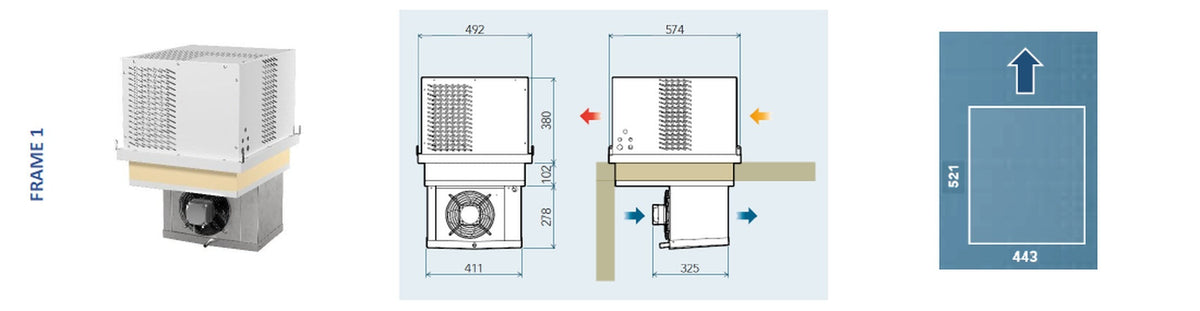

| Dimensions | 492 W x 574 D mm; 380 mm above the ceiling panel, evaporator 278 mm below. Ceiling cut-out 443 x 521 mm |
- Drop-in (ceiling) mounted: the unit sits on the cool room roof and the evaporator drops through a single ceiling cut-out into the room
- Ideal where wall space is limited, and keeps the unit clear of walkways
- Self-contained monoblock: no copper pipe run and no separate condensing unit
- Supplied pre-charged and factory tested
- Hermetic compressor, HP and LP safety switches, thermostatic expansion valve
- Hot gas defrost with drain heater; condensate drain to be run from the unit
- Electronic controller with remote keypad on a 5 m cable, with room light control
- Pre-wired cables: 3 m power, 3 m door switch, 4 m room light
Capacities are manufacturer technical data at 32°C ambient. Actual room size depends on panel insulation, door openings and product load, so talk to Honar to confirm the right unit for your room. Installation by a qualified refrigeration technician.
