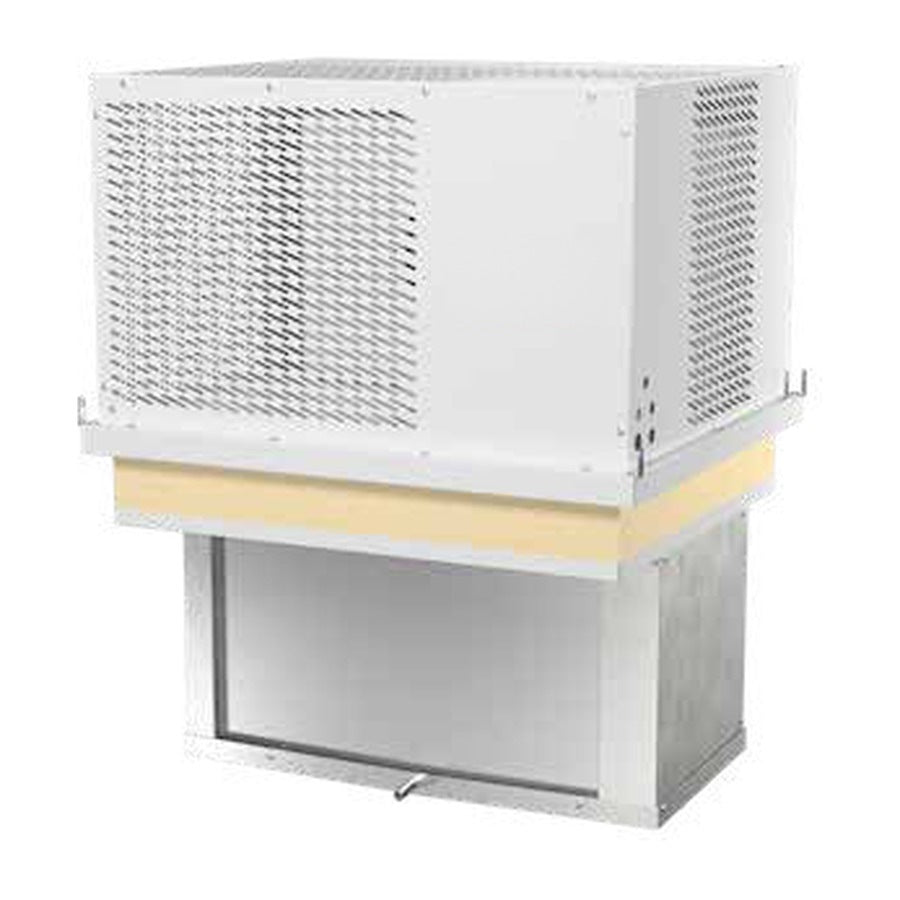

The CMN152 is a self-contained drop-in monoblock refrigeration unit for cool rooms, made in Italy and supplied by Honar Refrigeration. It sits on the cool room roof with the evaporator dropped into the room through one cut-out, so there is no copper pipe run or separate condensing unit to install.
| Model | CMN152 |
| Series | CM drop-in (ceiling mounted) monoblock, frame 3 |
| Application | Cool room, room temperature range +5°C to -5°C (chiller) |
| Cooling capacity | 2559 W at 0°C room / 32°C ambient |
| Suits room up to | approx. 26.7 m³ at 0°C room / 32°C ambient |
| Refrigerant | R455A (low GWP) |
| Power supply | 230V single phase |
| Max power input | 1914 W |
| Max current | 10.01 A |
| Compressor | 1.5 HP |
| Evaporator air throw | 7.5 m |

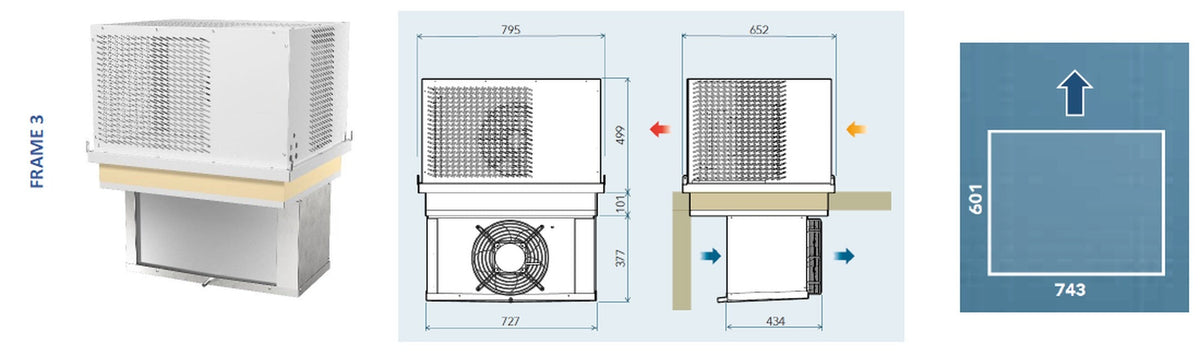

| Dimensions | 795 W x 652 D mm; 499 mm above the ceiling panel, evaporator 377 mm below. Ceiling cut-out 743 x 601 mm |
| Cooling capacity at 25°C ambient | 2805 W at 0°C room, suits approx. 30.3 m³ |
| Cooling capacity at 43°C ambient | 2113 W at 0°C room, suits approx. 19.8 m³ (hot plant rooms) |
| Condenser fans | 1 x 300 mm, 1700 m³/h |
| Evaporator fans | 1 x 300 mm, 1600 m³/h |
| Compressor displacement | 34.45 cc (hermetic) |
| Net weight | 86 kg |
- Drop-in (ceiling) mounted: the unit sits on the cool room roof and the evaporator drops through a single ceiling cut-out into the room
- Ideal where wall space is limited, and keeps the unit clear of walkways
- Self-contained monoblock: no copper pipe run and no separate condensing unit
- Supplied pre-charged and factory tested
- Hermetic compressor, HP and LP safety switches, thermostatic expansion valve
- Hot gas defrost with drain heater; condensate drain to be run from the unit
- Electronic controller with remote keypad on a 5 m cable, with room light control
- Pre-wired cables: 3 m power, 3 m door switch, 4 m room light
Optional extras (on request): polyurethane kit panel for through-the-wall installation, cataphoresis anti-corrosion coating on the condenser and evaporator coils, water-cooled condenser with water valve, Wi-Fi remote monitoring, crankcase heater and special voltages.
Capacities are manufacturer technical data at the ambient temperatures shown, with room volumes based on 80 mm insulated walls and floor (100 mm for freezer rooms). Actual room size depends on panel insulation, door openings and product load, so talk to Honar to confirm the right unit for your room. Installation by a qualified refrigeration technician.
