ACB210 Wall Mounted Monoblock Freezer Room Unit 9m³
ACB210 Wall Mounted Monoblock Freezer Room Unit 9m³
Regular price
$5,640.00
Regular price
Sale price
$5,640.00
SKU:ACB210
Couldn't load pickup availability

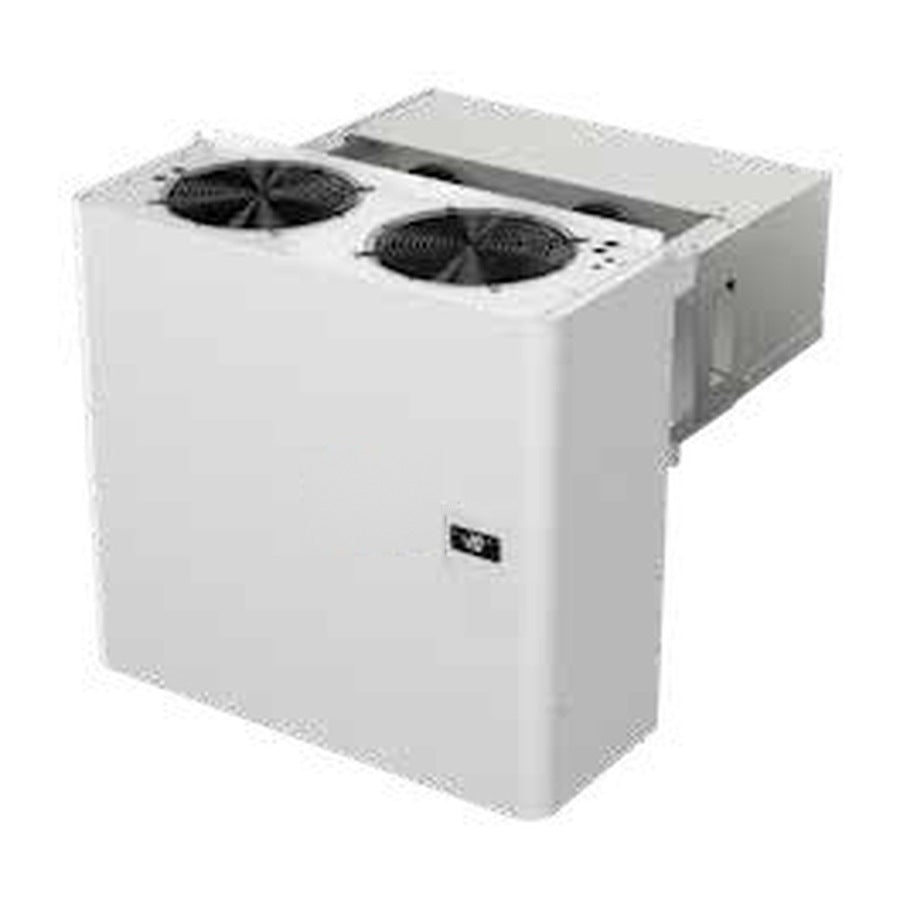

The ACB210 is a self-contained wall mounted monoblock refrigeration unit for freezer rooms, made in Italy and supplied by Honar Refrigeration. It straddles the wall panel, so there is no copper pipe run or separate condensing unit to install.
| Model | ACB210 |
| Series | AC wall mounted monoblock, frame 2 |
| Application | Freezer room, room temperature range -18°C to -25°C (freezer) |
| Cooling capacity | 1150 W at -18°C room / 32°C ambient |
| Suits room up to | approx. 9.1 m³ at -18°C room / 32°C ambient |
| Refrigerant | R455A (low GWP) |
| Power supply | 230V single phase |
| Max power input | 1539 W |
| Max current | 8.05 A |
| Compressor | 1.8 HP |
| Evaporator air throw | 5 m |

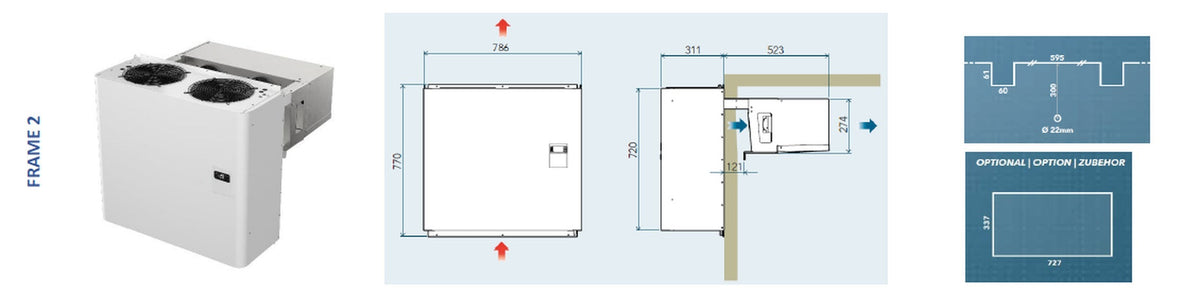

| Dimensions | 786 W x 770 H mm; projects 311 mm outside the wall and 523 mm into the room |

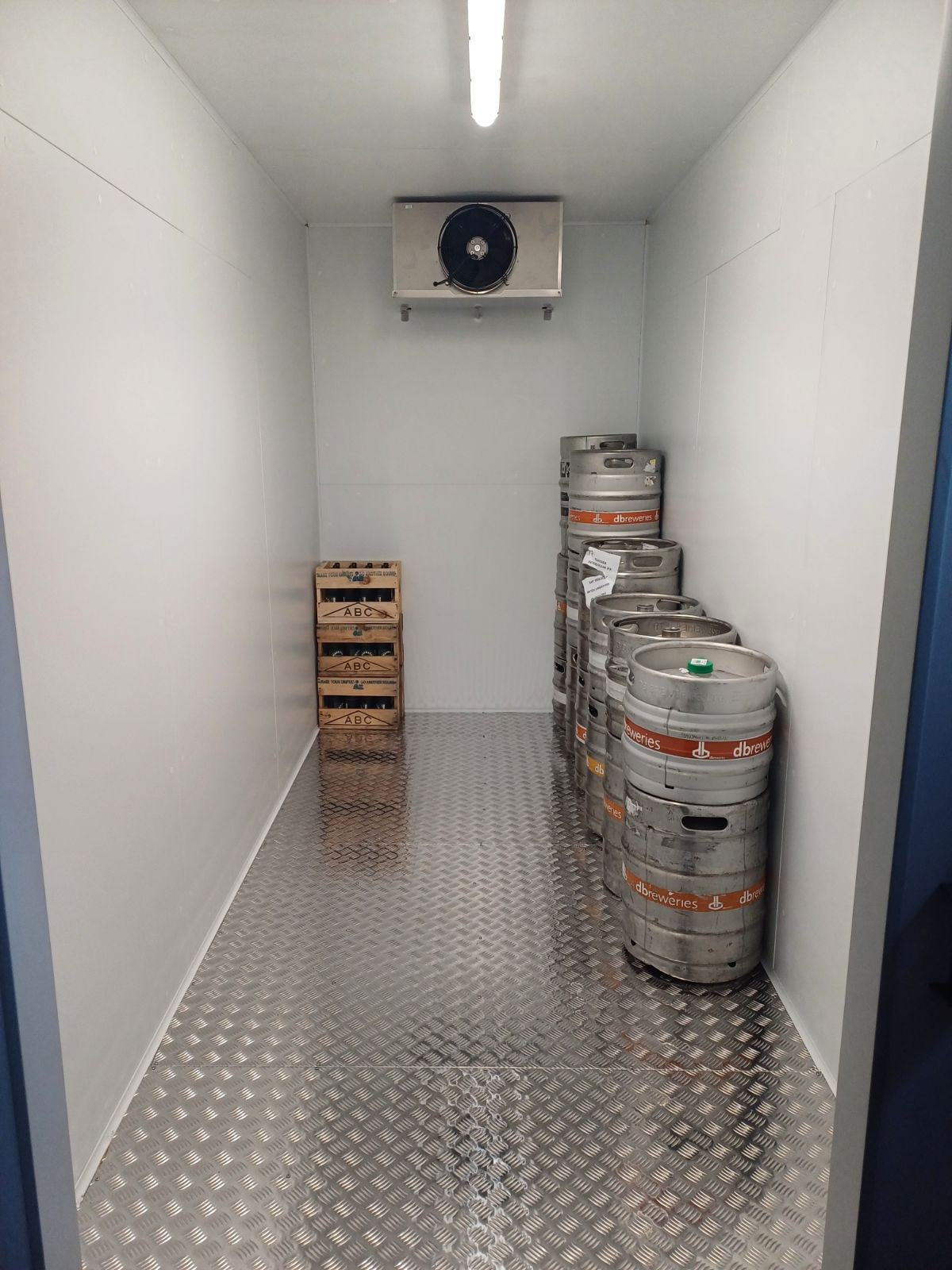

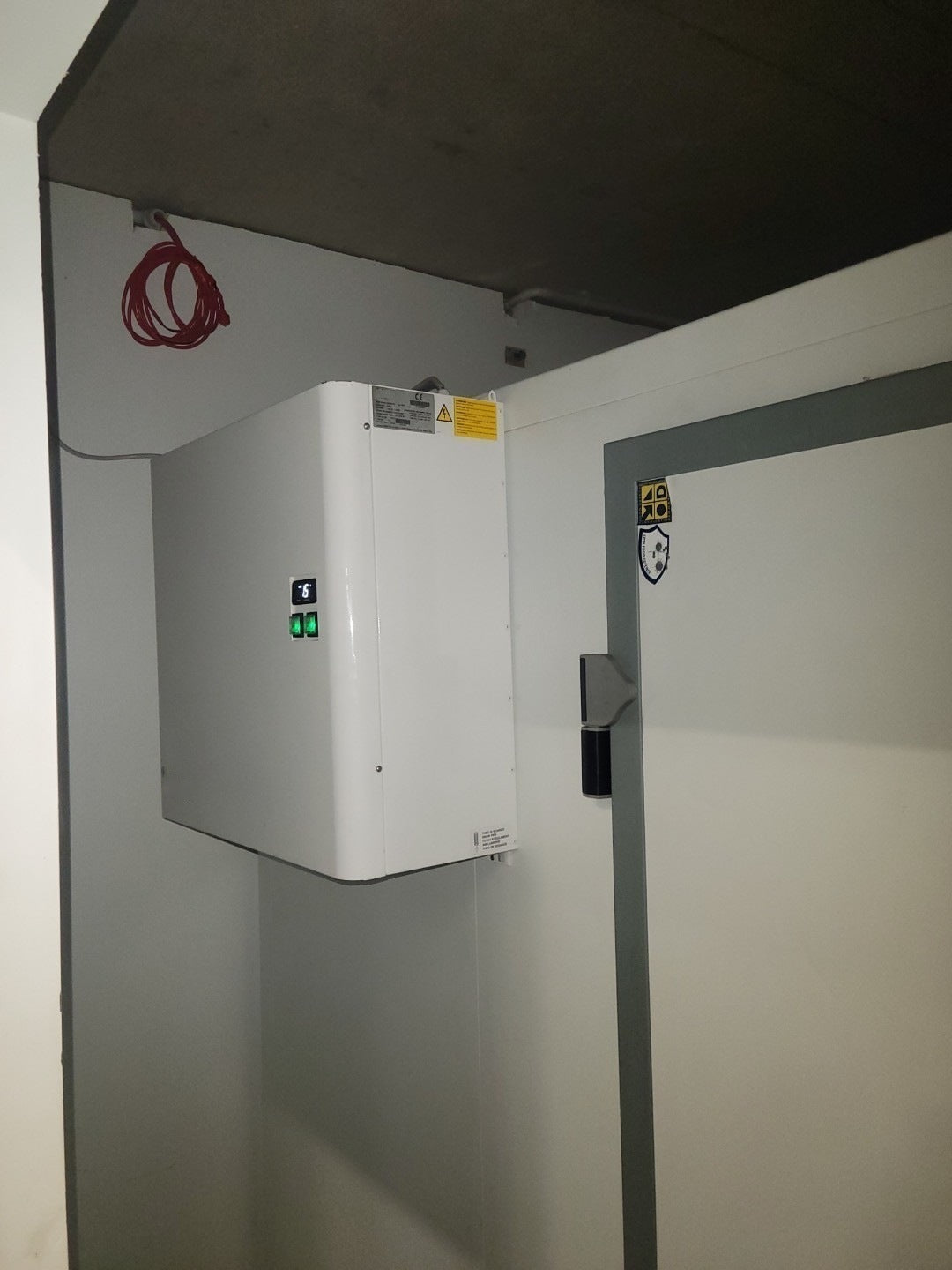

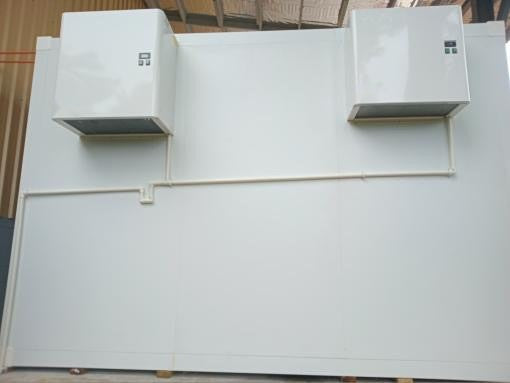

- Straddle (wall) mounted: the condensing section sits outside the room and the evaporator inside, through slots cut in the top of the wall panel
- Self-contained monoblock: no copper pipe run and no separate condensing unit, which saves installation labour and materials
- Supplied pre-charged and factory tested
- Hermetic compressor, HP and LP safety switches, thermostatic expansion valve
- Hot gas defrost; condensate drains to the unit's evaporation tray (drain heater fitted)
- Digital electronic controller with room light control and RS485 output
- Pre-wired cables: 3 m power, 3 m door switch, 4 m room light
- Optional polyurethane plug-panel kit (100 or 150 mm) for installation through a single cut-out
- Includes 4 m cable for a freezer room door heater
Capacities are manufacturer technical data at 32°C ambient. Actual room size depends on panel insulation, door openings and product load, so talk to Honar to confirm the right unit for your room. Installation by a qualified refrigeration technician.
