ECB-1000Plus Cool Room Electrical Control Box

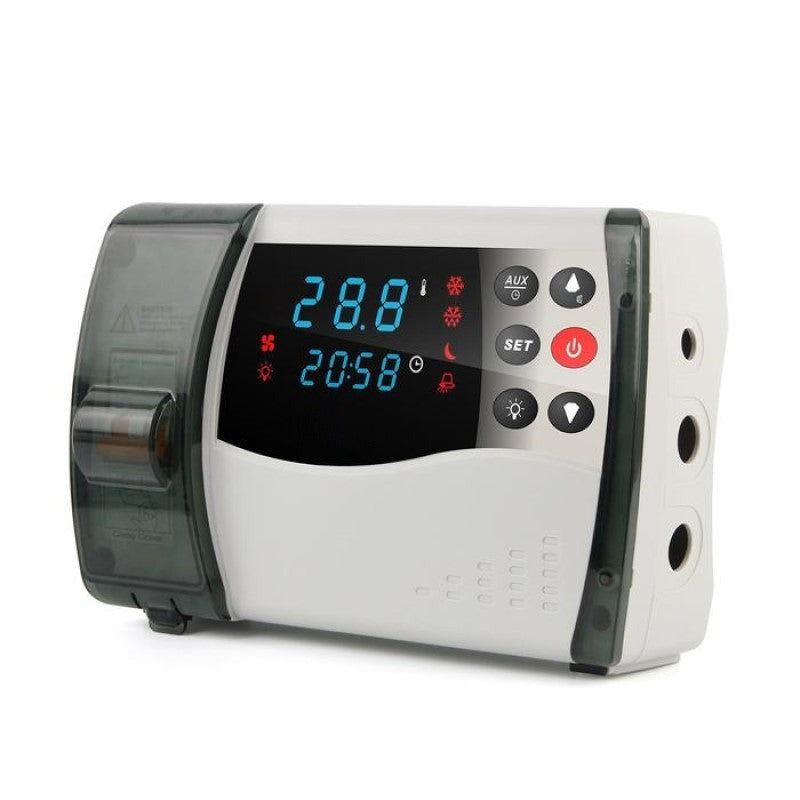

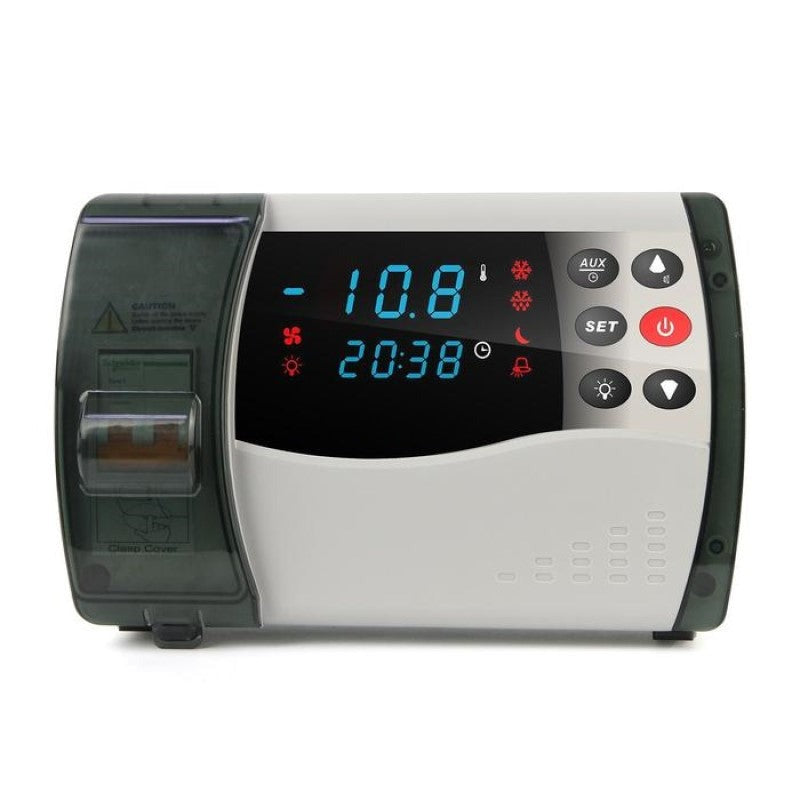

ECB-1000Plus Cool Room Electrical Control Box
Regular price
$370.00
Regular price
Sale price
$370.00
SKU:ECB-1000PLUS
Couldn't load pickup availability
The ECB-1000Plus is an all-in-one electrical control box for cool rooms and freezer rooms. The temperature controller, compressor relay and outputs for defrost, evaporator fans, room light and alarm are built into one wall-mounted panel, so the whole refrigeration system is run and protected from a single box. Supplied by Honar Refrigeration.
| Model | ECB-1000Plus |
| Power supply | 100-256VAC, 50/60Hz, less than 7 W |
| Compressor output | 50A / 240VAC relay (3HP at 220V) |
| Defrost output | 30A / 220VAC |
| Fan output | 16A / 220VAC |
| Light output | 16A / 220VAC |
| Alarm output | 10A / 220VAC |
| Measuring range | -49°C to 119°C |
| Control range | -40°C to 99°C |
| Accuracy | ±1°C (-20°C to 50°C), ±1.5°C outside that range |
| Resolution | 0.1°C |
| Sensors | NTC 10K room sensor and evaporator (defrost) sensor |
| Communication | RS-485 Modbus |
| Size | 261 x 167.5 x 92 mm, flame-retardant ABS housing |
- Controller, compressor relay and all outputs in one pre-wired box
- Outputs for compressor, defrost heater, evaporator fans, room light and alarm
- Dual LED display showing room temperature and clock
- Forced defrost, high and low temperature alarms and sensor fault alarm
- Password protection and energy-saving night mode
- Waterproof, dustproof and shockproof housing
- Need remote monitoring? See the ECB-1000Plus Cloud (Wi-Fi) version, or add an RCW-800W Wi-Fi alarm
Installation by a qualified electrician or refrigeration technician. Talk to Honar to confirm the right controller for your cool room or freezer room.
