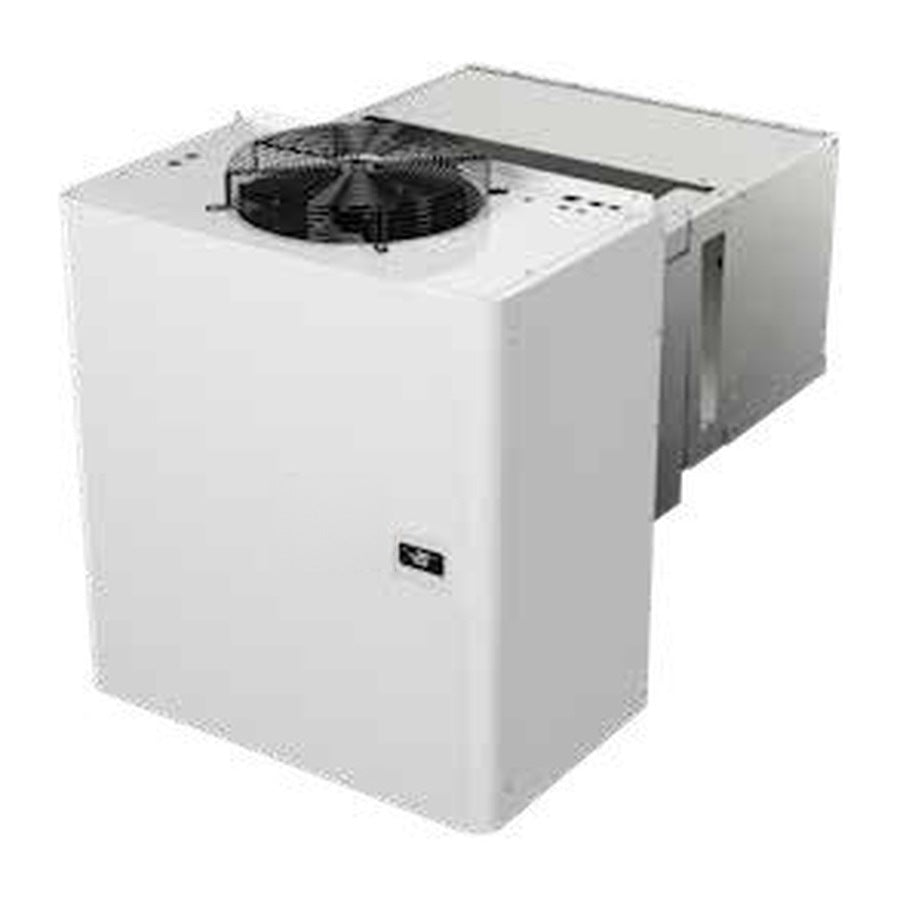

The ACN250 is a self-contained wall mounted monoblock refrigeration unit for cool rooms, made in Italy and supplied by Honar Refrigeration. It straddles the wall panel, so there is no copper pipe run or separate condensing unit to install.
| Model | ACN250 |
| Series | AC wall mounted monoblock, frame 3M |
| Application | Cool room, room temperature range +5°C to -5°C (chiller) |
| Cooling capacity | 3651 W at 0°C room / 32°C ambient |
| Suits room up to | approx. 40.3 m³ at 0°C room / 32°C ambient |
| Refrigerant | R455A (low GWP) |
| Power supply | 400V three phase |
| Max power input | 2518 W |
| Max current | 5.28 A |
| Compressor | 2.5 HP |
| Evaporator air throw | 11 m |

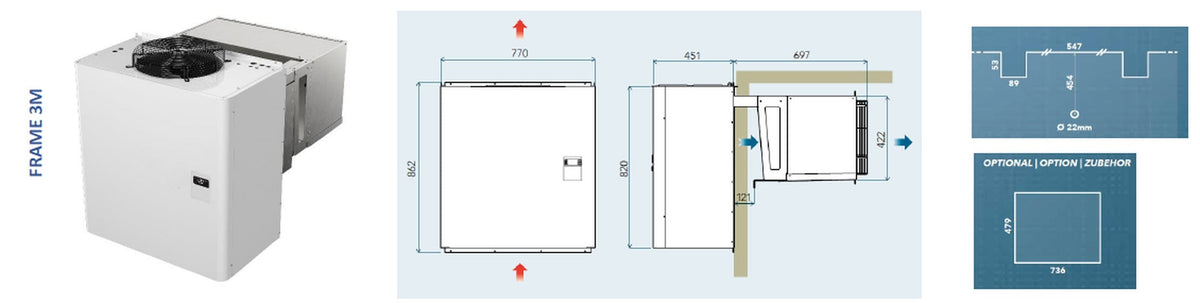

| Dimensions | 770 W x 862 H mm; projects 451 mm outside the wall and 697 mm into the room |
| Cooling capacity at 25°C ambient | 3890 W at 0°C room, suits approx. 43.3 m³ |
| Cooling capacity at 43°C ambient | 2987 W at 0°C room, suits approx. 30.1 m³ (hot plant rooms) |
| Condenser fans | 1 x 350 mm, 2300 m³/h |
| Evaporator fans | 1 x 350 mm, 2200 m³/h |
| Compressor displacement | 50.6 cc (hermetic) |
| Net weight | 96 kg |
- Straddle (wall) mounted: the condensing section sits outside the room and the evaporator inside, through slots cut in the top of the wall panel
- Self-contained monoblock: no copper pipe run and no separate condensing unit, which saves installation labour and materials
- Supplied pre-charged and factory tested
- Hermetic compressor, HP and LP safety switches, thermostatic expansion valve
- Hot gas defrost; condensate drains to the unit's evaporation tray (drain heater fitted)
- Digital electronic controller with room light control and RS485 output
- Pre-wired cables: 3 m power, 3 m door switch, 4 m room light
- Optional polyurethane plug-panel kit (100 or 150 mm) for installation through a single cut-out
Optional extras (on request): polyurethane kit panel for through-the-wall installation, cataphoresis anti-corrosion coating on the condenser and evaporator coils, water-cooled condenser with water valve, Wi-Fi remote monitoring, crankcase heater and special voltages.
Capacities are manufacturer technical data at the ambient temperatures shown, with room volumes based on 80 mm insulated walls and floor (100 mm for freezer rooms). Actual room size depends on panel insulation, door openings and product load, so talk to Honar to confirm the right unit for your room. Installation by a qualified refrigeration technician.
