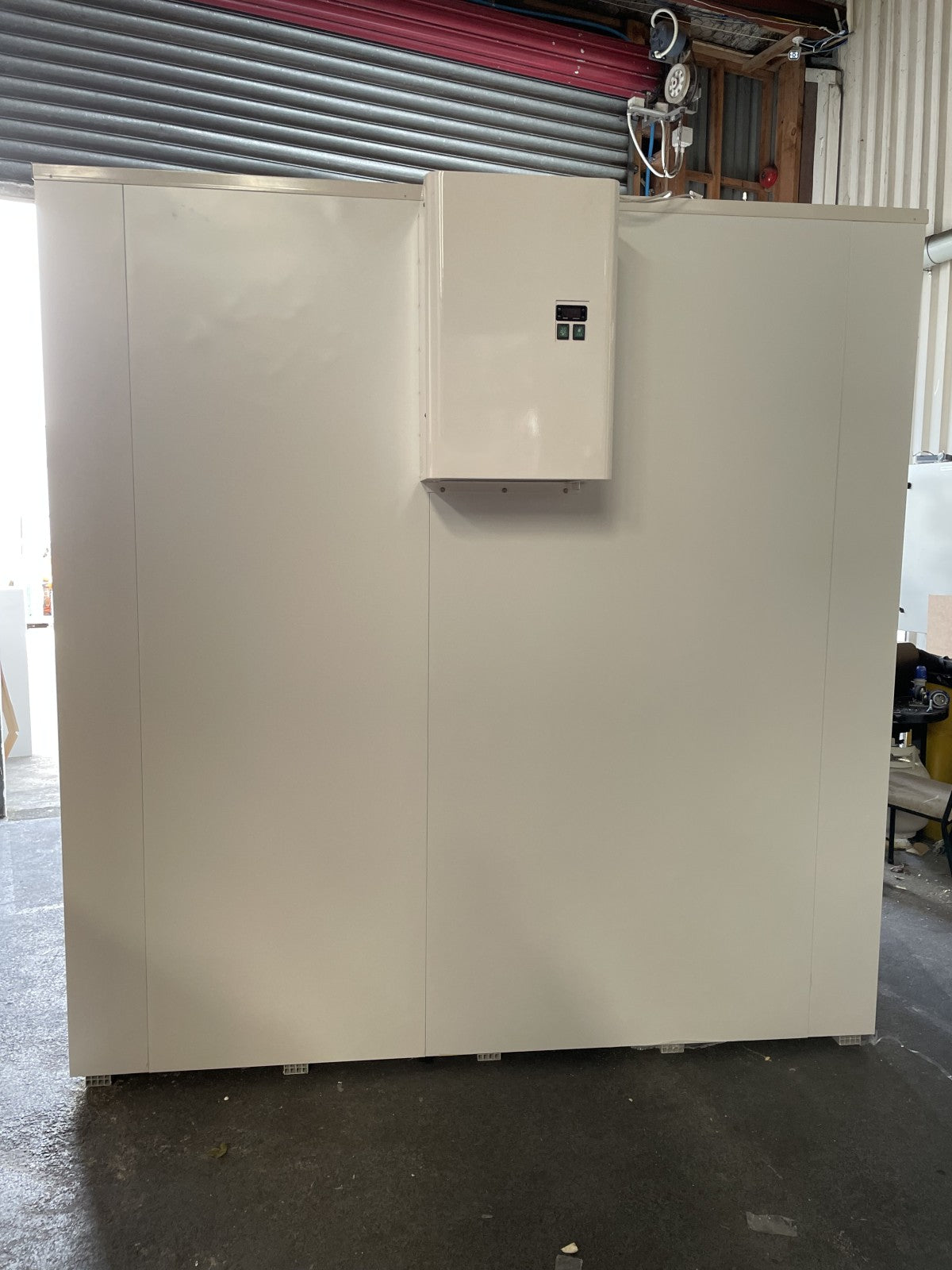

  • Wall mounted monoblock unit fitted to a cool room
1 5

ACN122 Wall Mounted Monoblock Cool Room Chiller 16m³

ACN122 Wall Mounted Monoblock Cool Room Chiller 16m³

$5,333.00
$5,333.00
Sale Sold out

ACN122

The ACN122 is a self-contained wall mounted monoblock refrigeration unit for cool rooms, made in Italy and supplied by Honar Refrigeration. It straddles the wall panel, so there is no copper pipe run or separate condensing unit to install.

Model ACN122
Series AC wall mounted monoblock, frame 2
Application Cool room, room temperature range +5°C to -5°C (chiller)
Cooling capacity 1910 W at 0°C room / 32°C ambient
Suits room up to approx. 16.4 m³ at 0°C room / 32°C ambient
Refrigerant R455A (low GWP)
Power supply 230V single phase
Max power input 1501 W
Max current 7.83 A
Compressor 1.2 HP
Evaporator air throw 5 m
Dimensions 786 W x 770 H mm; projects 311 mm outside the wall and 523 mm into the room
Cooling capacity at 25°C ambient 2160 W at 0°C room, suits approx. 20.5 m³
Cooling capacity at 43°C ambient 1632 W at 0°C room, suits approx. 13.5 m³ (hot plant rooms)
Condenser fans 2 x 254 mm, 1600 m³/h
Evaporator fans 2 x 200 mm, 820 m³/h
Compressor displacement 25.95 cc (hermetic)
Net weight 73 kg
  • Straddle (wall) mounted: the condensing section sits outside the room and the evaporator inside, through slots cut in the top of the wall panel
  • Self-contained monoblock: no copper pipe run and no separate condensing unit, which saves installation labour and materials
  • Supplied pre-charged and factory tested
  • Hermetic compressor, HP and LP safety switches, thermostatic expansion valve
  • Hot gas defrost; condensate drains to the unit's evaporation tray (drain heater fitted)
  • Digital electronic controller with room light control and RS485 output
  • Pre-wired cables: 3 m power, 3 m door switch, 4 m room light
  • Optional polyurethane plug-panel kit (100 or 150 mm) for installation through a single cut-out

Optional extras (on request): polyurethane kit panel for through-the-wall installation, cataphoresis anti-corrosion coating on the condenser and evaporator coils, water-cooled condenser with water valve, Wi-Fi remote monitoring, crankcase heater and special voltages.

Capacities are manufacturer technical data at the ambient temperatures shown, with room volumes based on 80 mm insulated walls and floor (100 mm for freezer rooms). Actual room size depends on panel insulation, door openings and product load, so talk to Honar to confirm the right unit for your room. Installation by a qualified refrigeration technician.
